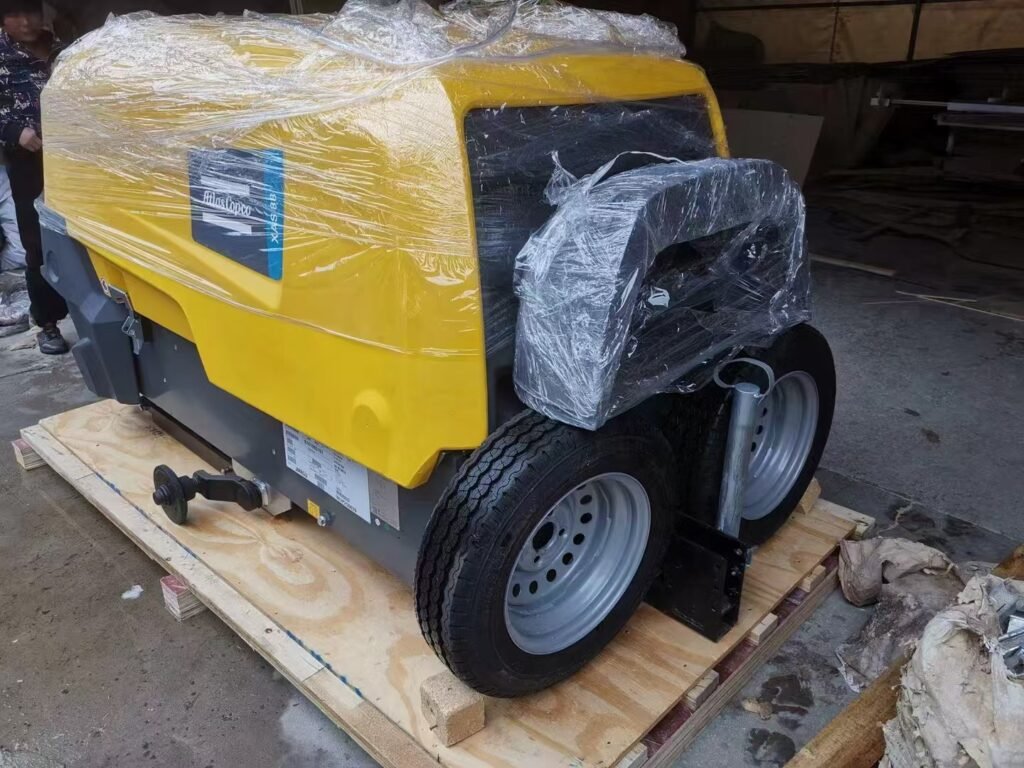

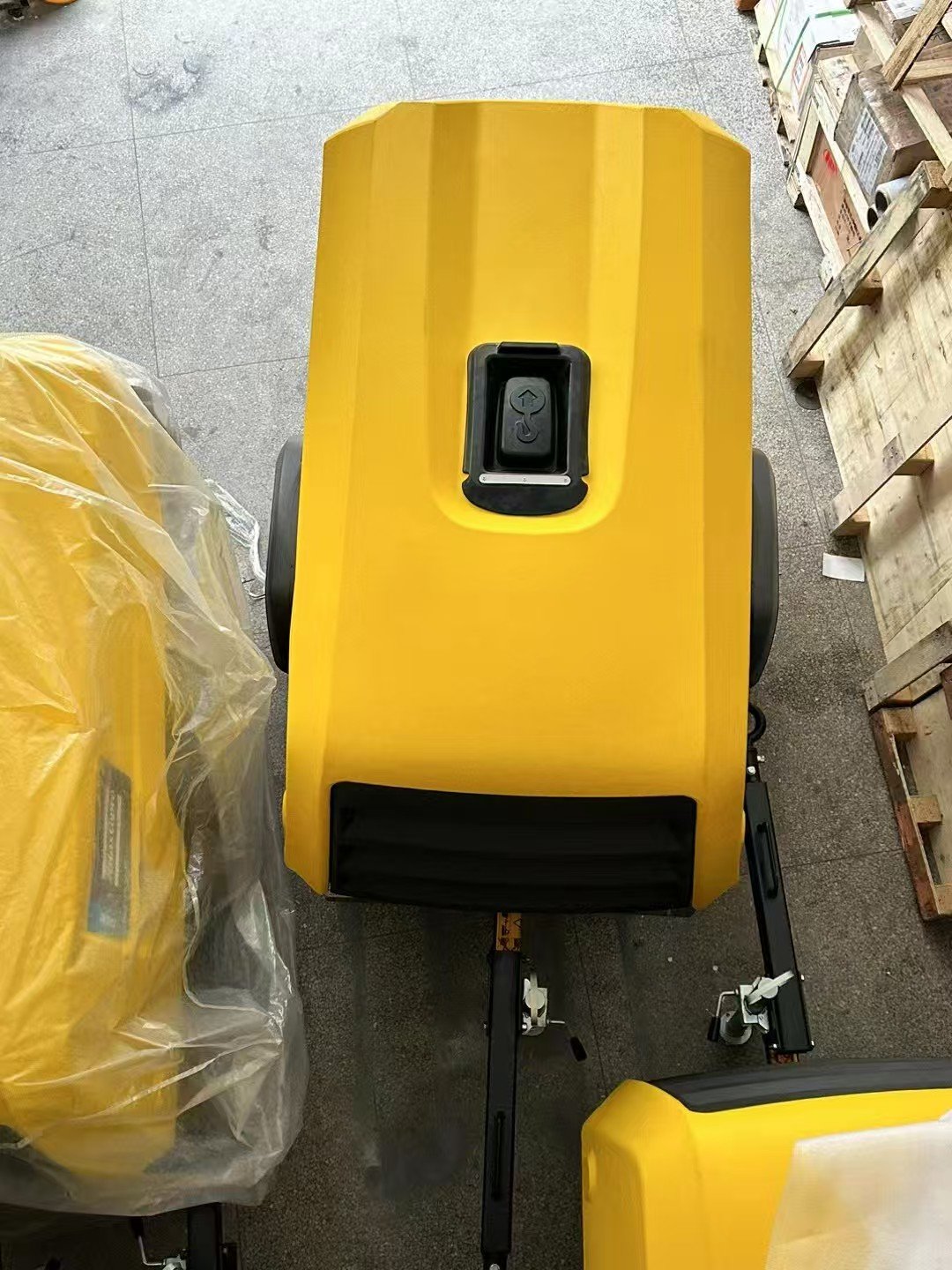

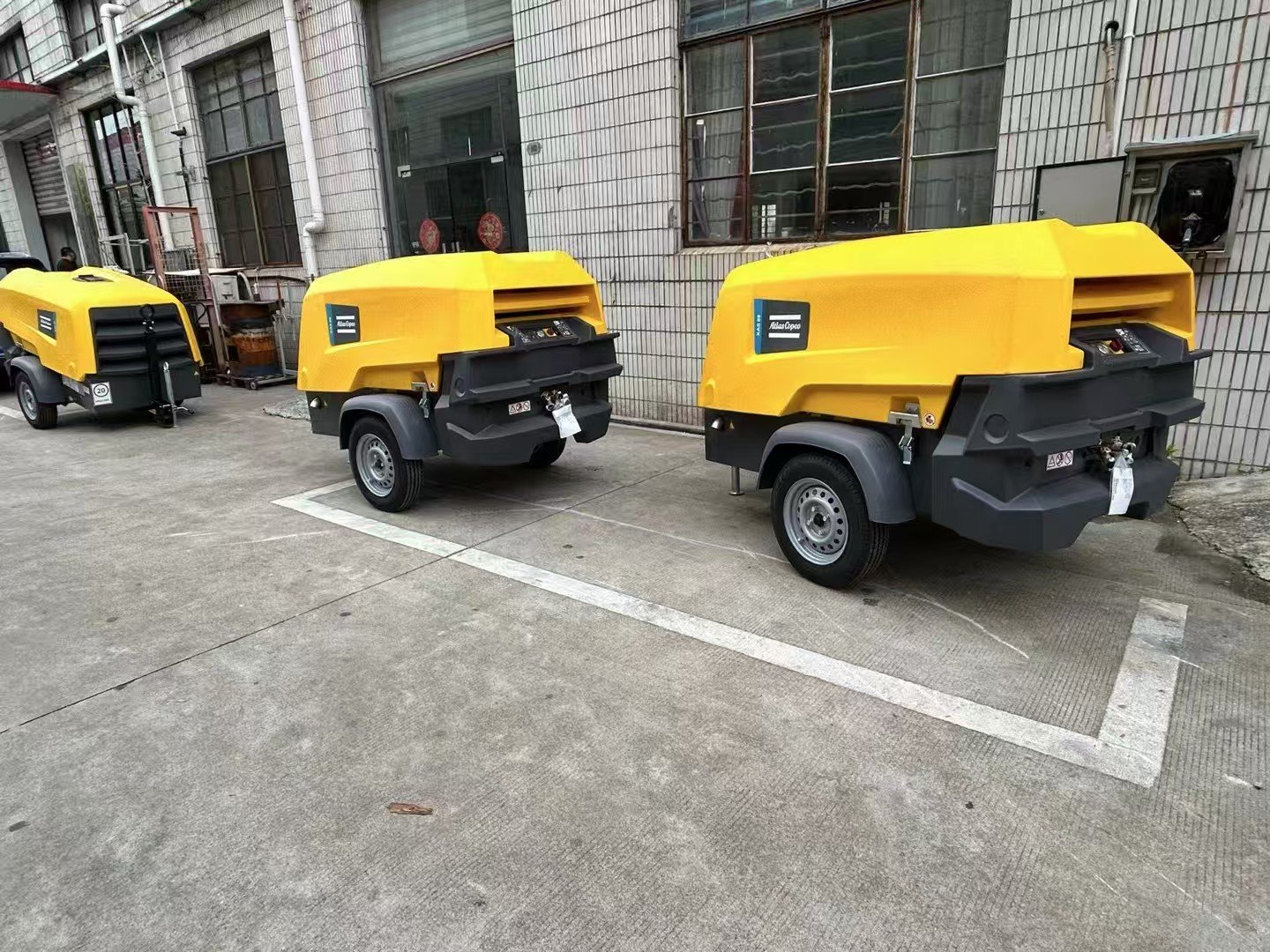

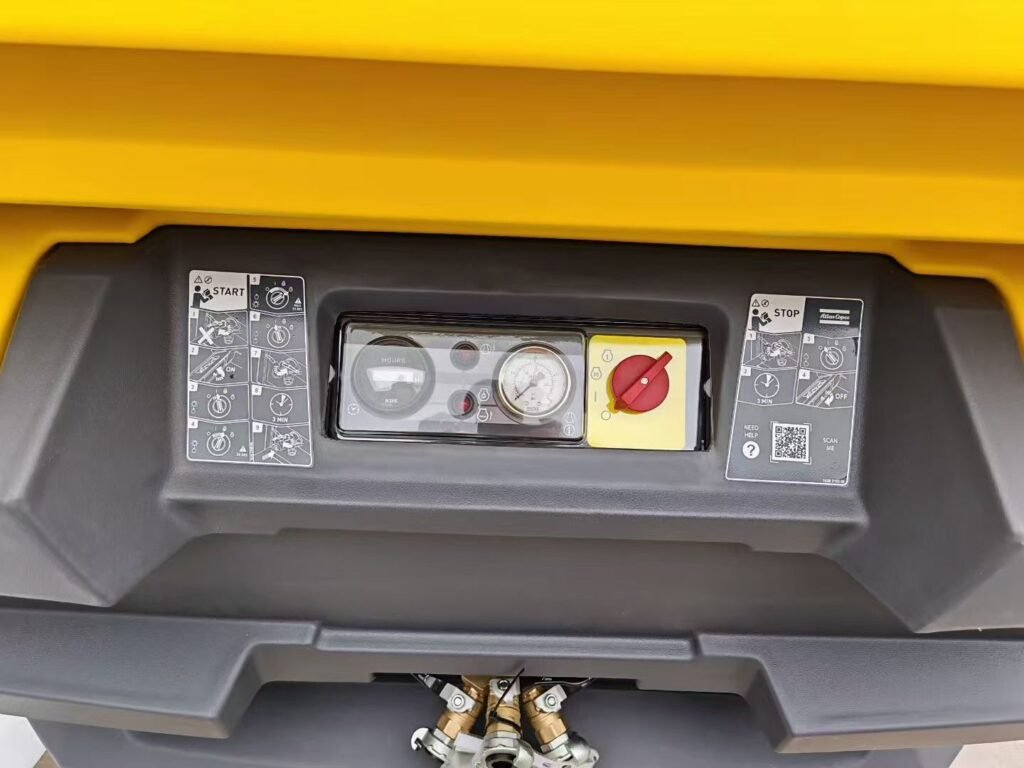

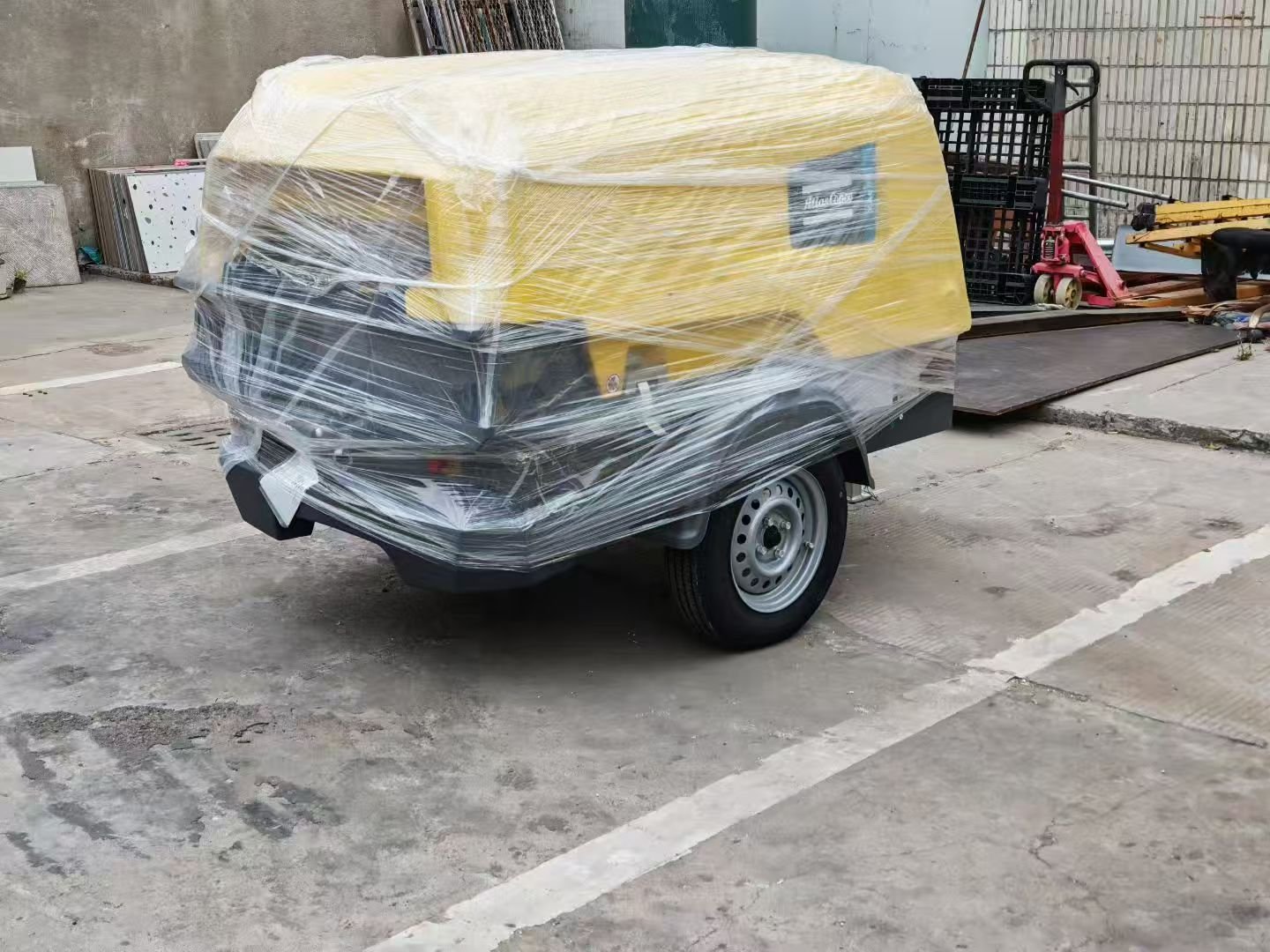

Atlas Copco XAS 68 Air Compressor
PRODUCT PARAMETERS
Description
The Atlas Copco XAS 68 is designed to deliver reliable and efficient compressed air for a variety of portable industrial and construction applications. Operating at a working pressure of 7 bar (100 psi), it provides a free air delivery of 135 CFM (3.5 m³/min), which ensures consistent output for pneumatic tools and machinery. Its airend is powered by a robust Kubota V1505 T engine with 33 kW output, optimized for durability and efficient fuel consumption.
With noise levels measured at 70 dB(A) sound pressure and 98 dB(A) sound power, the XAS 68 is suitable for on-site use with minimal disturbance. The compressor is engineered for extreme conditions, capable of operating in ambient temperatures up to 50 °C and starting reliably at temperatures as low as -20 °C with cold start aid. Compact dimensions and a transportable weight under 750 kg allow for straightforward mobility and deployment on work sites.
Maintenance and operation are simplified thanks to practical engine and compressor oil capacities of 5.5 L and 7.7 L, respectively, and a 60 L fuel tank providing extended runtime. The XAS 68 combines portability, operational efficiency, and proven engine reliability, making it a dependable choice for contractors, civil engineering projects, and industrial applications requiring continuous compressed air.
Atlas Copco XAS 68 Air Compressor Technical Parameters
| Category | Specification | Value |
|---|---|---|
| Performance | Model | XAS 68 KdG |
| Working pressure | 7 bar (g) / 100 psi (g) | |
| Free air delivery | 135 CFM / 3.5 m³/min | |
| Output power | 6.5 or 12 kVA | |
| Noise sound pressure level (Lp) | 70 dB(A) | |
| Noise sound power level (Lw) | 98 dB(A) | |
| Maximum ambient temperature (sea level) | 50 °C | |
| Minimum starting temperature | -10 °C | |
| Minimum starting temperature (cold start aid) | -20 °C | |
| Engine | Engine model | Kubota V1505 T |
| Number of cylinders | 4 | |
| Power output @ normal shaft speed | 33 kW | |
| Full load RPM | 3000 rpm | |
| Unload RPM | 1850 rpm | |
| Engine oil capacity | 5.5 L | |
| Compressor oil capacity | 7.7 L | |
| Fuel tank capacity | 60 L | |
| Dimensions – Box Unit | Length | 1940 mm |
| Width | 1180 mm | |
| Height | 1150 mm | |
| Transport / Portable | Weight (box) | 650 kg |
| Transport length (undercarriage) | 2290 mm | |
| Transport width (undercarriage) | 1350 mm | |
| Transport height (undercarriage) | 1400 mm | |
| Portable weight | < 750 kg |
