Atlas Copco Air Compressors

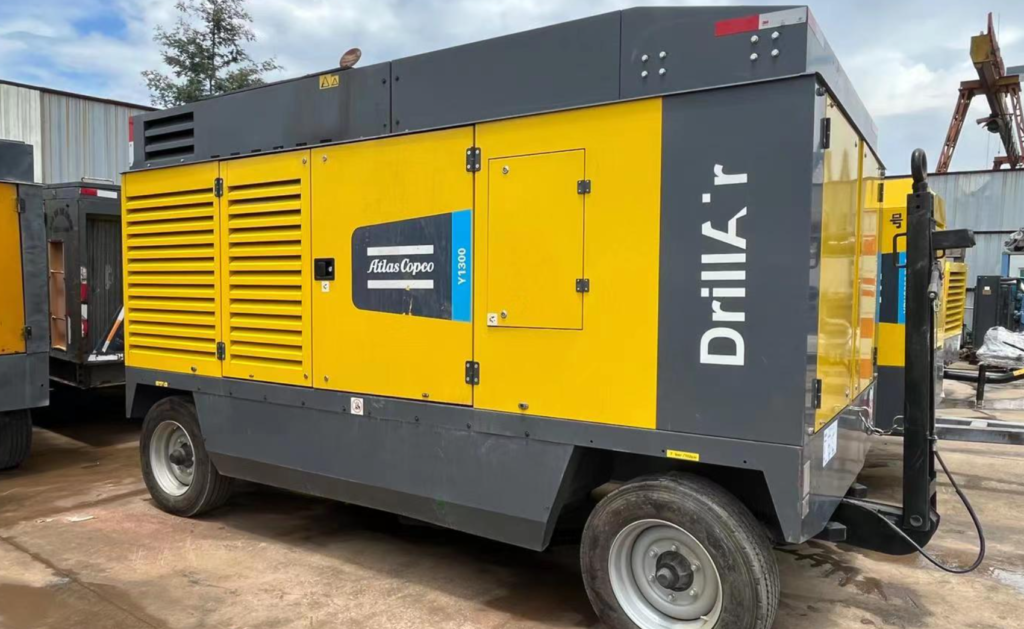

Atlas Copco Y1300 AirDrill Portable Air Compressor
PRODUCT PARAMETERS
Description
Atlas Copco Y1300 Portable Air Compressor is designed to provide high-capacity compressed air for demanding industrial and construction applications. With a free air delivery ranging from approximately 33 to 37 m³/min (1165–1300 cfm) and a working pressure adjustable between 15 and 35 bar, the unit is capable of supporting high-pressure operations such as drilling, pipeline testing, and large-scale blasting.
A key advantage of the Y1300 lies in its robust engine configuration. Powered by a Cummins QSZ13 engine delivering up to 410 kW (550 hp), the compressor maintains stable performance under continuous load conditions. The engine is designed to operate at 1300 rpm under full load, contributing to steady output and controlled operating conditions.
The compressor also emphasizes operational endurance. With a fuel tank capacity of 876 liters, it supports extended operating periods, reducing the frequency of refueling during continuous use. This feature is particularly beneficial in remote locations or projects requiring uninterrupted air supply.
The integrated Xc4004 control system provides essential monitoring and control functions, allowing operators to manage key performance parameters effectively. Additionally, the unit is designed to operate in ambient temperatures up to 50°C without an aftercooler, ensuring reliable performance in challenging environments.
Noise levels are managed within defined limits, with a sound pressure level of approximately 79 dB(A) at 10 meters, supporting compliance with typical site requirements. Overall, the Atlas Copco Y1300 combines high airflow capacity, stable engine performance, and operational reliability, making it a suitable solution for heavy-duty applications.
Atlas Copco Y1300 DrillAir Compressor Technical Parameters
| Category | Parameter | Unit | Value |
|---|---|---|---|
| Model Information | Model | — | Y1300 |
| Performance | Free Air Delivery | m³/min | 37 – 33 |
| Free Air Delivery | cfm | 1300 – 1165 | |
| Working Pressure | bar | 15 – 35 | |
| Working Pressure | psi | 218 – 508 | |
| Noise Levels | Sound Power Level (Lw @2000/14/EC) | dB(A) | 109 |
| Sound Pressure Level @10 m | dB(A) | 79 | |
| Operating Conditions | Max. Ambient Temperature (without aftercooler) | °C | 50 |
| Max. Ambient Temperature (with aftercooler) | °C | 45 | |
| Control System | Controller Model | — | Xc4004 |
| Engine Specifications | Engine Brand | — | Cummins / DCEC |
| Engine Model | — | QSZ13 | |
| Emission Standard | — | G3 | |
| Engine Power (Full Load) | kW | 410 | |
| Engine Power (Full Load) | hp | 550 | |
| Rated Speed (Full Load) | rpm | 1300 | |
| Unload Speed | rpm | 1700 | |
| Air System | Compressed Air Outlet | — | 1 × G2 |
| Fuel System | Fuel Tank Capacity | L | 876 |
| Dimensions & Weight (Box Type) | Dimensions (L × W × H) | mm | 4205 × 2243 × 2268 |
| Operating Weight (Wet) | kg | 6360 | |
| Dimensions & Weight (Wagon Type) | Dimensions (L × W × H) | mm | 4997 × 2243 × 2566 |
| Operating Weight (Wet) | kg | 6500 |
FAQs
Are your new Atlas Copco compressors 100% original genuine?
All new units are original factory genuine with official serial numbers, complete traceability, and factory certification. No copies, modified, or rebuilt machines.
What condition are your used/second-hand compressors in?
Every used unit is professionally inspected, tested, cleaned, serviced, and load-run before sale. They are in stable working condition with reliable performance.
Can you provide serial number, working hours and test reports?
Yes. We provide serial number, actual working hours, configuration, photos, and test run reports for each used machine before order confirmation.
What types of Atlas Copco compressors do you provide?
- We supply three main categories:
- Portable/mobile compressors
- Oil-injected screw compressors
- Oil-free screw compressors
- Both new and used are available.
