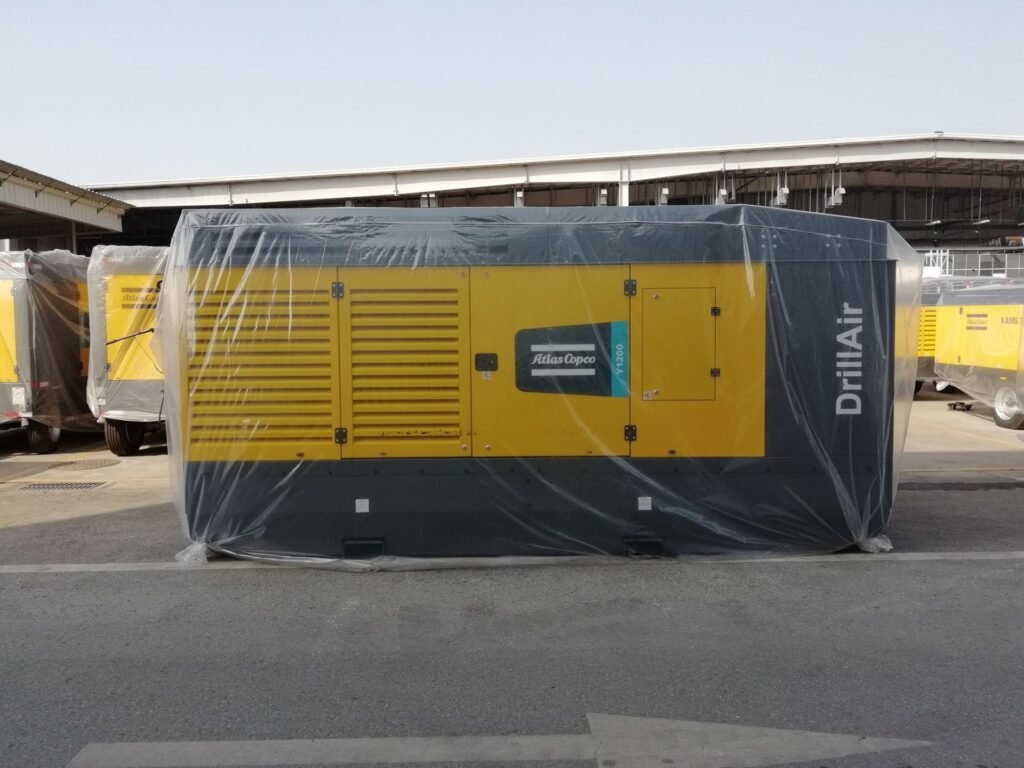

Atlas Copco Y1200 Drill Portable Air Compressor
PRODUCT PARAMETERS
Description
Atlas Copco Y1200 Portable Air Compressor offers a combination of high airflow, wide pressure range, and durable construction, making it suitable for intensive industrial and construction tasks. Its ability to deliver up to 1370 cfm of compressed air at pressures reaching 35 bar allows it to support applications that require both volume and pressure simultaneously.
One of the notable strengths of the Y1200 is its operational flexibility. The adjustable pressure range from 15 to 35 bar enables the compressor to be configured for different tasks, from high-pressure drilling to specialized pipeline operations. This versatility reduces the need for multiple machines on site.
The unit is powered by a Caterpillar C15 engine, which provides 403 kW of power at full load. This ensures consistent airflow even under demanding conditions. The engine’s speed control contributes to stable operation and efficient power utilization across varying loads.
In terms of field usability, the compressor is available in both box and wagon configurations, allowing it to be adapted to different transportation and deployment requirements. The large-capacity fuel tank supports long operating periods, minimizing interruptions during continuous use.
The Y1200 is also designed to operate under high ambient temperatures, making it suitable for use in harsh environments. The optional aftercooler enhances air quality by reducing discharge temperature and moisture content.
With its Xc4004 control system, operators can monitor and manage performance parameters effectively. In summary, the Atlas Copco Y1200 provides a reliable and flexible compressed air solution for demanding applications.
Atlas Copco Y1200 Air Compressor Technical Parameters
| Category | Parameter | Unit | Value |
|---|---|---|---|
| Model Information | Model | — | Y1200 |
| Performance | Free Air Delivery | m³/min | 39 – 32 |
| Free Air Delivery | cfm | 1370 – 1150 | |
| Working Pressure | bar | 15 – 35 | |
| Working Pressure | psi | 218 – 508 | |
| Noise Levels | Sound Power Level (Lw @2000/14/EC) | dB(A) | 109 |
| Sound Pressure Level @10 m | dB(A) | 80 | |
| Operating Conditions | Max. Ambient Temperature (without aftercooler) | °C | 50 |
| Max. Ambient Temperature (with aftercooler) | °C | 45 | |
| Control System | Controller Model | — | Xc4004 |
| Engine Specifications | Engine Brand | — | Caterpillar |
| Engine Model | — | C15 | |
| Emission Standard | — | G3 | |
| Engine Power (Full Load) | kW | 403 | |
| Engine Power (Full Load) | hp | 540 | |
| Rated Speed (Full Load) | rpm | 1650 | |
| Unload Speed | rpm | 1300 | |
| Air System | Compressed Air Outlet | — | 1 × G2 |
| Fuel System | Fuel Tank Capacity | L | 975 |
| Dimensions & Weight (Box Type) | Dimensions (L × W × H) | mm | 4500 × 2246 × 2265 |
| Operating Weight (Wet) | kg | 6800 | |
| Dimensions & Weight (Wagon Type) | Dimensions (L × W × H) | mm | 6696 × 2246 × 2506 |
| Operating Weight (Wet) | kg | 7670 |
FAQs
Are your new Atlas Copco compressors 100% original genuine?
All new units are original factory genuine with official serial numbers, complete traceability, and factory certification. No copies, modified, or rebuilt machines.
What condition are your used/second-hand compressors in?
Every used unit is professionally inspected, tested, cleaned, serviced, and load-run before sale. They are in stable working condition with reliable performance.
Can you provide serial number, working hours and test reports?
Yes. We provide serial number, actual working hours, configuration, photos, and test run reports for each used machine before order confirmation.
What types of Atlas Copco compressors do you provide?
- We supply three main categories:
- Portable/mobile compressors
- Oil-injected screw compressors
- Oil-free screw compressors
- Both new and used are available.
